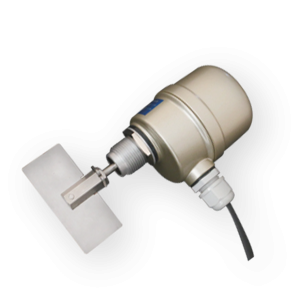

Small Rotary Paddle Type Level Switch LS Series
Small rotary paddle type level switch realizes the reduction in size and weight and low price while advanced functions and high quality remain.
Features
- A clutch mechanism is provided as standard to protect the motor from overloads on the paddle.

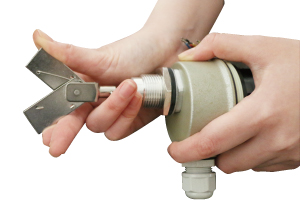

- No need to remove paddle during installation as folding paddle is applied as standard.
- Wetted part material stainless steel is available.
Operating Principles
When the deposit of material restricts the paddle rotated by the motor, the contact is output to stop the motor. When there is no more material to detect, the motor resumes to rotate.
| Model | LS Standard Type |
| Power Source | AC100 or 110 or 200 or 220V 50/60Hz |
| Power Consumption | 1.5W |
| Contact Capacity | AC250V 3A Resistance Load |
| Rate of Rotation | 0.83rpm (50Hz) |
| Allowable Temperature | 0~ 50℃(Neither condensed nor frozen) Heat resistant type 0~120°C |
| Withstand voltage | AC1500V for one minute (Each Terminal ~ Case) |
| Color | Gold |
| Process Connection | G3/4B |
| Enclosure Rating | IP67 |

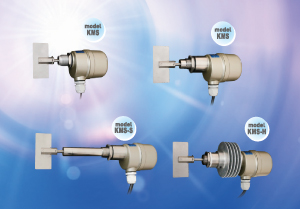

Product Lineup
In addition to the above, various specifications are available.
For more information, see respective catalogs or contact us by phone or mail.
-

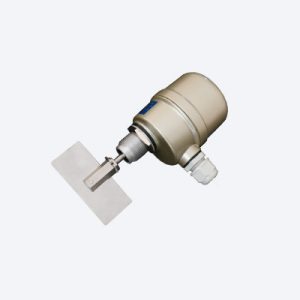

LS
Standard Type
-
LS-K
Square Flange Type
-

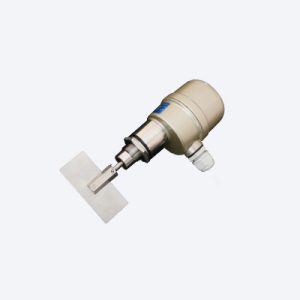

LS (SUS304)
Wetted Part SUS Type
-

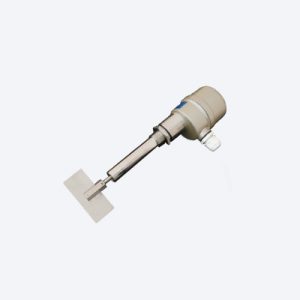

LS-S
Extensive Protective Tube Type
-

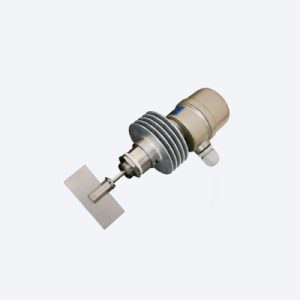

LS-H
Heat Resistant Type
